Robot transportasi SDCXRB-03A1/RB06-900/ RB08/ RB08A3-1490/ RB08A3-1700/ RB08A3-1840/ RB10/ RB20/ RB50/ RB130/ RB165/ RB210

A introduksi singkat produk

Robot industri transportasi utamane digunakake kanggo grinding, polishing, loading lan blanking menyang / saka alat mesin, transportasi otomatis kanggo stamping jalur produksi otomatis, etc. Robot transportasi minangka produk otomatis sing nggunakake trek gerak robot kanggo ngganti transportasi manual.Kauntungane yaiku bisa ngrampungake kabeh jinis tugas sing dikarepake kanthi program.Iki nggabungake kaluwihan manungsa lan mesin ing struktur lan kinerja, utamane ngemot intelijen buatan lan kemampuan adaptasi.

KONTAK KAMI

Detail Produk

Tag produk

Parameter teknis

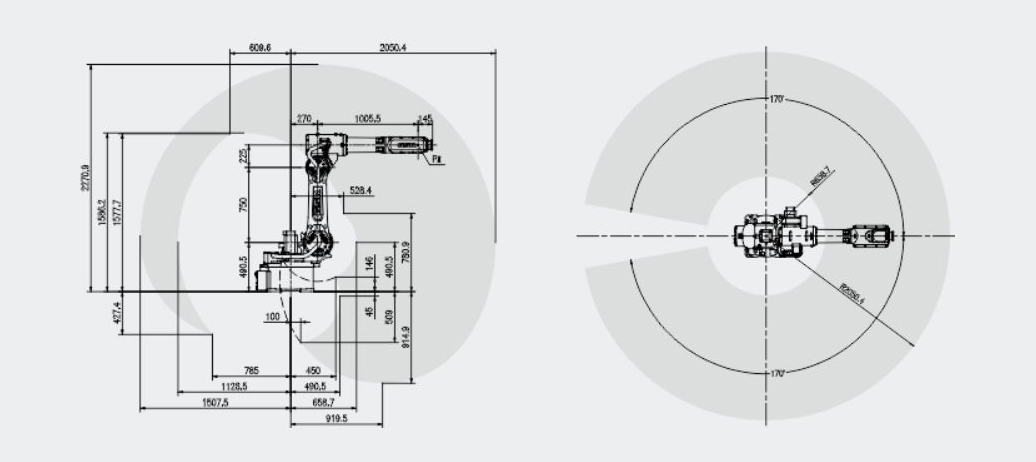

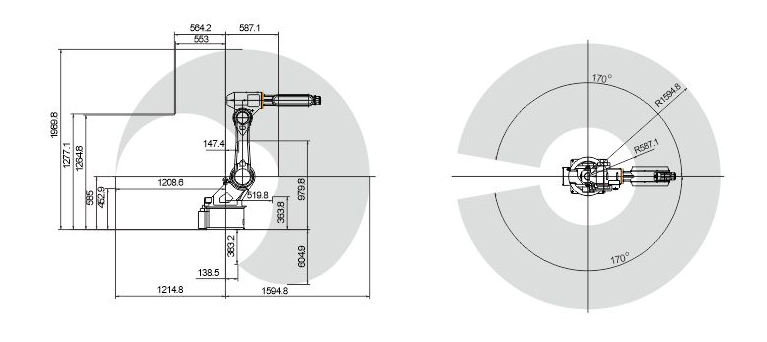

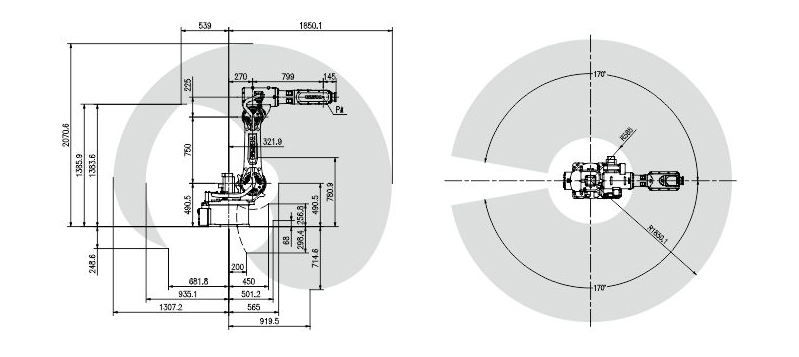

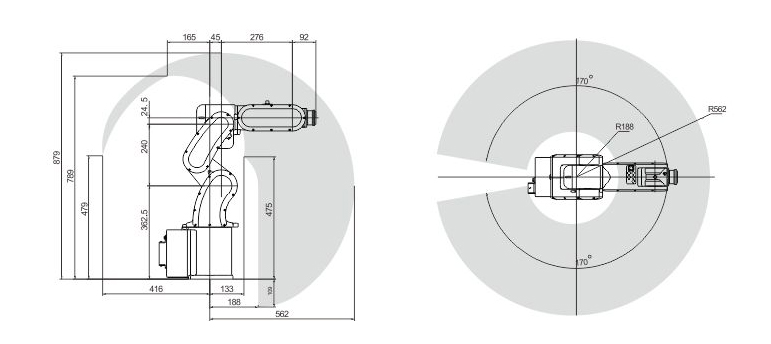

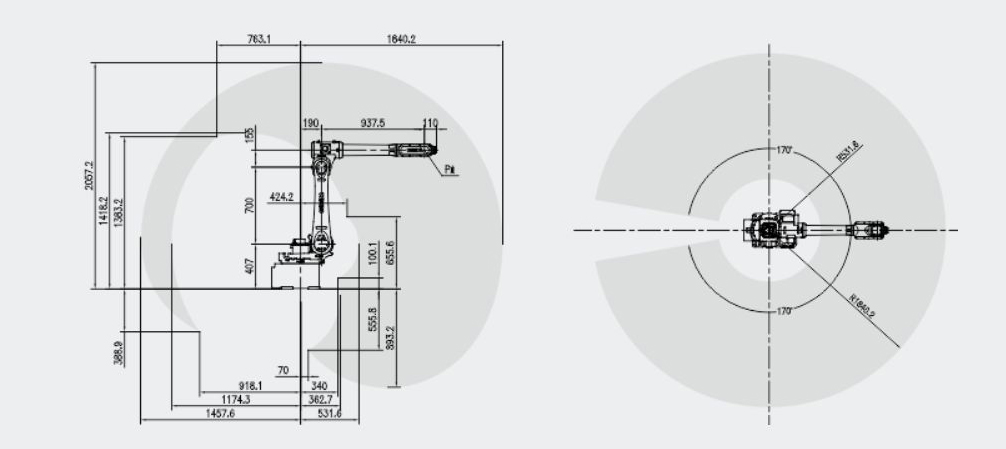

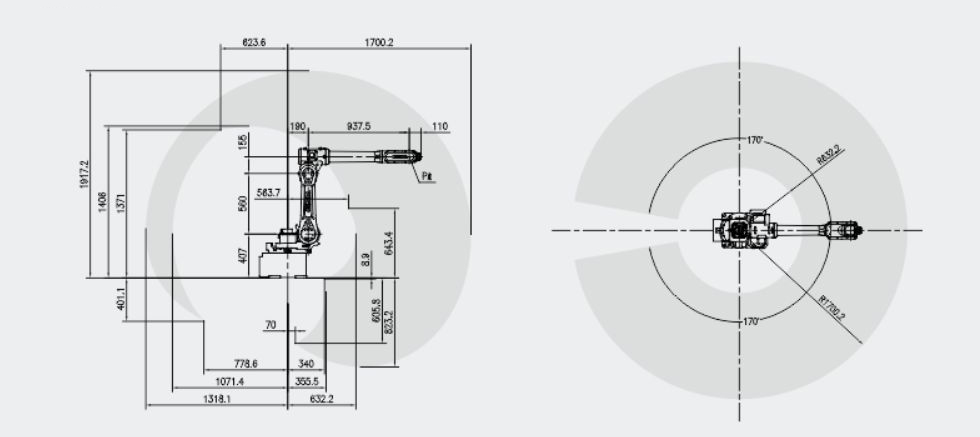

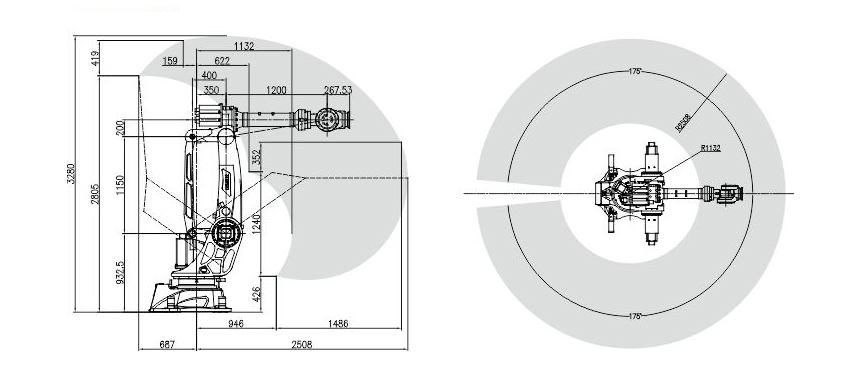

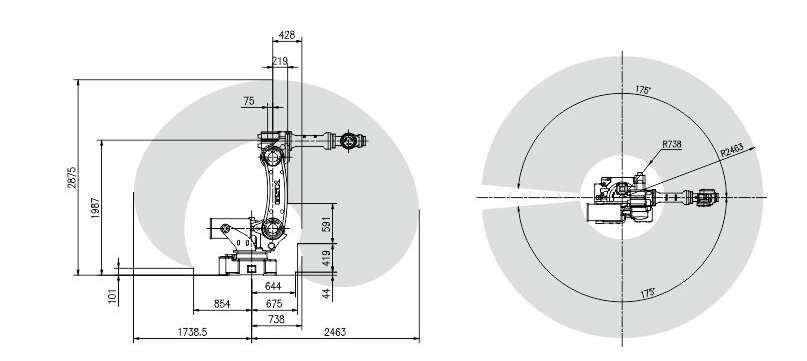

Model No.		Gelar Merdeka	Mode nyopir	Muatan (kg)	Akurasi posisi bola-bali (mm)	Range gerak (°)						Kacepetan maksimum (°/s)						Torsi maksimum sing diidini (N. m)			Radius saka gerakan (mm)	Bobot Deaa (kg)
Model No.		Gelar Merdeka	Mode nyopir	Muatan (kg)	Akurasi posisi bola-bali (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Radius saka gerakan (mm)	Bobot Deaa (kg)
SDCX-RB03A1		6	AC servo drive	3	± 0,02	± 150	+136~-51	+64~-131	±150	±120	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36
SDCX-RB06-900		6	AC servo drive	6	± 0,03	± 170	+135~100	+155~110	± 170	± 120	± 360	337.5	270	375	300	375	468	12	10	6	900	60
SDCX-RB08		6	AC servo drive	8	± 0,05	± 170	+120~-85	+75~-155	± 180	± 135	± 360	154	154	154	420	252	620	14	12	7	1389	180
SDCX-RB08A3-1490		6	AC servo drive	8	± 0,05	± 170	+120~-85	+83~-150	± 180	± 135	± 360	200	200	200	400	356	600	14	12	7	1490	185
SDCX-RB08A3-1700		6	AC servo drive	8	± 0,05	± 170	+120~-85	+83~-150	± 180	± 135	± 360	180	180	180	400	356	600	14	12	7	1700	187
SDCX-RB08A3-1840		6	AC servo drive	6	± 0,05	± 170	+120~-85	+83~-150	± 180	± 135	± 360	160	160	160	400	356	600	14	12	7	1840	180
SDCX-RB10		6	AC servo drive	10	± 0,05	± 170	+150~-85	+85~-170	± 360	± 120	± 360	200	160	200	360	360	600	43.2	43.2	25.4	1550	240
Seri SDCX-RB20	SDCX-RB06-2060	6	AC servo drive	6	± 0,05	± 170	+145~-100	+75~-165	± 180	± 135	± 360	165	165	170	300	356	600	40	12	7	2060	285
	SDCX-RB15L	6	AC servo drive	15	± 0,05	± 170	+145~-100	+75~-165	± 180	± 133	± 360	165	165	170	300	198	394	40	50	22	1794	300
	SDCX-RB20	6	AC servo drive	20	± 0,05	± 170	+132~-95	+73~-163	± 180	± 133	± 360	165	165	170	300	198	394	40	50	22	1595	290
SDCX-RB50		6	AC servo drive	50	± 0,05	± 178	+130~-90	+75~-200	± 360	± 115	± 360	171	171	171	215	251	365	196	196	127	1956	600
SDCX-RB130		6	AC servo drive	130	± 0,20	± 175	+75~-60	+80~-185	± 360	± 115	± 360	100	94	104	165	174	238	951	951	490	2715	1420
SDCX-RB165		6	AC servo drive	165	± 0,20	± 175	+75~-60	+80~-185	± 360	± 115	± 360	100	94	104	152	160	220	951	951	490	2463	1400
SDCX-RB210		6	AC servo drive	210	± 0,20	± 175	+75~-60	+80~-185	± 360	± 115	± 360	100	94	104	144	118	200	1274	1274	686	2463	1430
SDCX-RB300		6	AC servo drive	300	± 0,20	± 175	± 55	+116~-85	± 360	± 115	± 360	85	95	95	120	120	180	1274	1274	686	2508	1500

Aja kontak karo gas lan cairan sing gampang kobong, mbledhos lan korosif;Aja disiram banyu, lenga lan bledug;Tetep adoh saka sumber gangguan listrik (plasma)
